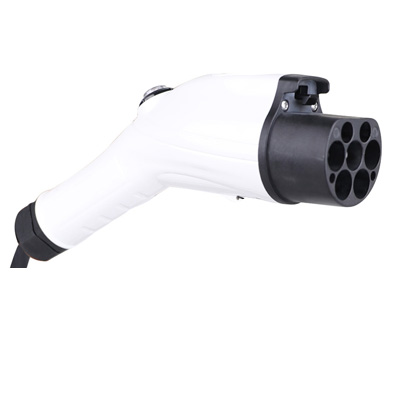

国标交流充电枪W-III

应用领域:

下载手册

产品参数:

□ 额定电压 Rated Voltage:250V AC

□ 额定电流 Rated Current:10A/16A/32A

□ 绝缘电阻 Insulation Resistance:≥500MΩ

□ 耐电压 Withstand Voltage:2500V AC

□ 机械寿命Mechanical Lifetime:≥10000 cycles (no-load)

□ 插拔力 Insertion and Separation Forces:F<100N

□ 防护等级Protection Degree:枪体IP67,枪头插合IP55

□ 环境温度 Operating Temperature:-30℃~50℃

□ 湿度 Operating Moisture:5%~95%(40℃)

□ 阻燃等级 Flame Retardant Grade:Ul94 V-0
